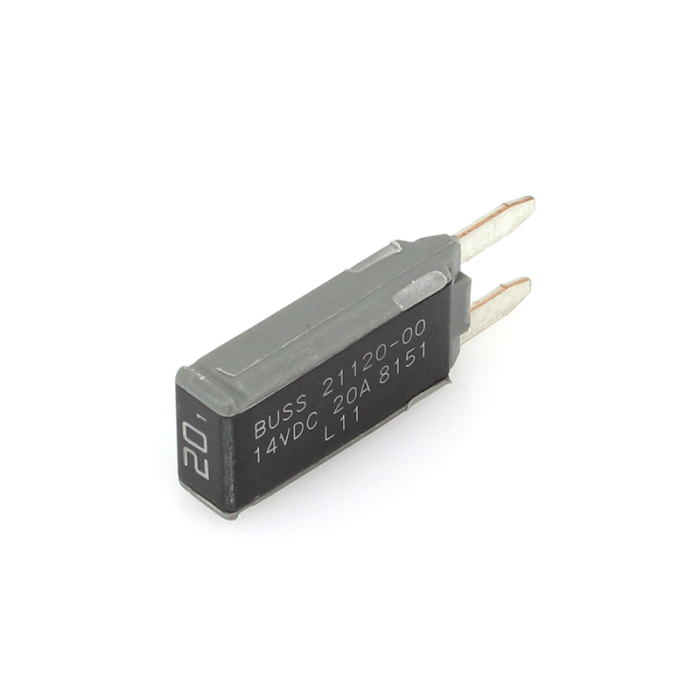

Bussmann 21120-00 20A Mini Blade Circuit Breaker - Thermal Type 1

Special Price $9.70 Regular Price $9.90
Out of stock
SKU
21120-00

Bussmann 21120-00 20A Mini Blade Circuit Breaker - Thermal Type 1

Buy Bussmann 21120-00 20A Mini Blade Circuit Breaker - Thermal Type 1 Online

Automotive Fuses stocks the genuine Bussmann 21120-00 20A Mini Blade Circuit Breaker - Thermal Type 1. Order online for fast dispatch anywhere in Australia, with trade pricing available for workshops, auto electricians and fleets.

Bussmann 21120-00 20A Mini Blade Circuit Breaker - Thermal Type 1

Automatic Type 1

I. R.: 150A at 14VDC (5A to 10A)
225A at 14VDC (15A)
300A at 14VDC (20A)
450A at 14VDC (25A to 30A)

Voltage: 14VDC
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 125°C
Pack Size: Stocked lines 1, 10, 100pcs
Holders: Power Dist. Blocks (ISO 280)

Approvals: SAE j553

Bussmann 211 Mini Blade Circuit Breakers – MINI BLADE CIRCUIT BREAKER 20A 14VDC TYPE I

Features

  • Cover is colour coded to amperage ratings
  • Matches Mini fuse footprint
  • Manual reset button on top
  • Available in Automatic TI, Modified TII and Manual TIII types

Specifications

Part Number21120-00
DescriptionMINI BLADE CIRCUIT BREAKER 20A 14VDC TYPE I
Voltage14VDC (Automatic TI and Modified TII); 28VDC (Manual TIII)
Ampere Rating5A, 7.5A, 10A, 15A, 20A, 25A, 30A
I.R. (14VDC)150A at 14VDC (5A to 10A); 225A at 14VDC (15A); 300A at 14VDC (20A); 450A at 14VDC (25A to 30A)
I.R. (28VDC)100A at 28VDC (5A to 10A); 150A at 28VDC (15A); 200A at 28VDC (20A); 300A at 28VDC (25A to 30A)
Operating Temp-40°C to 85°C
Storage Temp-40°C to 125°C
ApprovalsSAE J553
Body ColourTan, Brown, Red, Blue, Yellow, White, Green
Blade Width2.8mm wide blades
ComplianceRoHS
More Information
Manufacturer Bussmann
Barcode 9347729001897
