The module is designed to clamp directly onto a 19mm positive battery post. Power from the battery is fed directly to both output circuits with no supply cable required. Both output cables feed out through slots in the cover to make for a professional and practical installation. Perfect for 4WDs and caravans where many accessories or dual battery systems are in use. Fuse NOT included, available seperately.

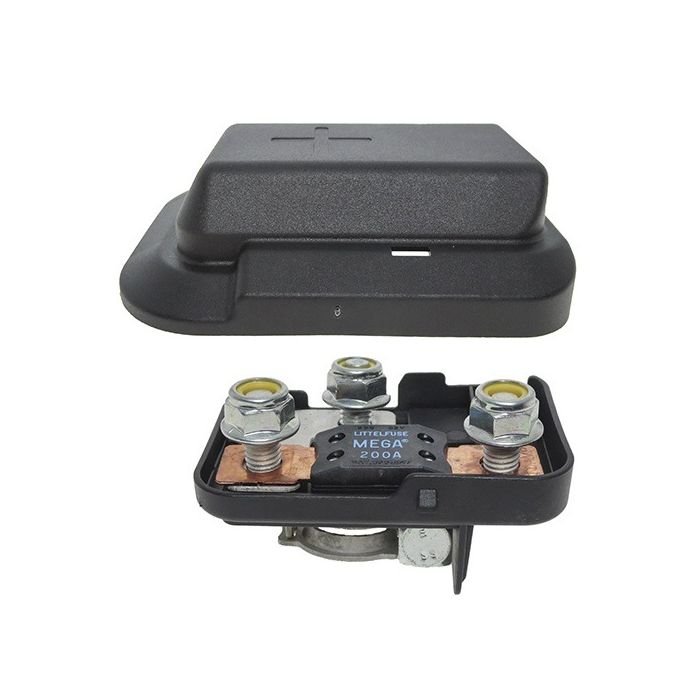

MTA 0101703 Battery Mounted Power Distribution Unit – MEGA FUSE PDU & COVER MOUNT TO BATTERY POST TERMINAL 250A 32VDC

Features

High-amperage circuit protection for harsh and hazardous environments
Waterproof sealed fuse compartment protects fuses from corrosion
Ignition protected for battery boxes or vehicles carrying hazardous loads
Stainless steel hardware and tin-plated copper for long-term corrosion protection
Allows dielectric spray on cable terminals without compromising fuse connections

Specifications

Part Number	0101703
Description	MEGA FUSE PDU & COVER MOUNT TO BATTERY POST TERMINAL 250A 32VDC
Voltage	70VDC (880014); 32VDC (0101703)
Rating	Max 500A, 375A continuous (880014); Max 250A (0101703)
Input Studs	M8 stainless steel (880014)
Ignition Protected	SAE J1171 and ISO 8846 (880014)
Ingress Protection	IP66 / IP69K (880014); IP69K (0101703)
Input Terminal Stud Torque	20Nm, max 30Nm (880014)
Mounting Fuse Stud Torque	12-18Nm (880014)
Mounting Block Torque (M6 Holes)	5-8Nm (880014)
Terminal Torque (M8 Posts)	4.5-11 Nm (0101703)
Material	Tin-plated 100% pure copper; stainless steel hardware (880014)
Mounting	Mounting block with M6 holes, Ø6.6 (880014); post mount (0101703)
Cover	AssureLatch with integrated tether (880014)
Note	Fuses not included (both products)
